Unitized Curtain Wall System: Modular Facades, Built for Scale

Designed for Scale. Engineered for Height.

Factory-built panels. Faster installation. Built for the towers that define a skyline.

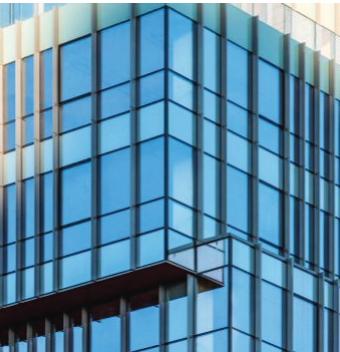

The Unitized Curtain Wall is PROCURAL's modular structural glazing system, built for high-rise towers, large commercial developments, and institutional buildings where scale and speed matter. Rather than being assembled piece by piece on site, complete panels are built and quality-checked in the factory, then lifted into place, giving a facade engineered for height, wind, and tight programme control.
Built on a modular concept, the system accommodates single glass and Insulated Glass Units, and carries a unique in-built hinged sash that prevents glass from falling out under extreme wind pressure. Panels arrive as finished units and lock to the structure, cutting time on scaffolding and reducing the number of trades working at height.
Because every high-rise facade is different, the Unitized system is engineered bespoke — wind pressure, fixing points, and external features are designed to the specific building, delivered with EN-standard test data and PRISM traceability.

Why Unitized Curtain Wall System Stands Apart

Built for Height - Designed for high-rise towers and large commercial elevations, the unitized system delivers the structural performance and installation logic that stick-built facades can't match at scale.
Factory-Built Precision - Complete panels are assembled and quality-checked in controlled factory conditions, then installed as finished units, giving tighter consistency and faster, safer installation at height.
Anti-Fallout Safety - A unique in-built hinged sash holds glass in place under extreme wind pressure, a genuine safety feature for tall, exposed elevations.
Engineered Per Project - Wind pressure, fixing points, glazing, and external features are designed bespoke to the building, so the facade is matched to the project rather than supplied to a fixed standard.

Technical Parameters

System Type

Modular / unitized structural glazing

Glazing Compatibility

Single glass and Insulated Glass Units (IGU)

Wind & Structural Design

Engineered bespoke to project wind pressure and fixing points

Key Safety Feature

In-built hinged sash — prevents glass fallout under extreme wind

FEATURES & BENEFITS

Factory-Built Precision

Panels are assembled and quality-checked in controlled factory conditions, not on a windy facade. Consistency you can't get from piece-by-piece site assembly.

Faster on the Facade

Complete units lift into place and lock to the structure. Less scaffolding time, fewer trades on the elevation, a quicker dry envelope.

Anti-Fallout Hinged Sash

The unique in-built hinged sash keeps glass held in place under extreme wind pressure — a genuine safety feature for tall, exposed elevations.

Single or Insulated Glass

The modular panel accommodates single glass or Insulated Glass Units, so the facade meets the building's thermal and acoustic targets as an aluminium facade system, not a compromise.

Engineered Per Project

Wind pressure, fixing points, and external features are designed for the specific building. No two unitized facades are detailed the same way.

Built for Height

Designed for high-rise towers, corporate campuses, and large commercial elevations where stick-built systems become slow and hard to control.

01/06

Frequently Asked Questions

Find answers to common questions about this topic.

A facade system built from complete, factory-assembled panels that are lifted into place on site, rather than assembled piece by piece. A PROCURAL unitized curtain wall accommodates single glass and Insulated Glass Units and carries an in-built hinged sash for wind safety.

SW152 is stick-built — mullions and transoms are assembled on site, ideal for low-rise facades and shopfronts. The unitized system is pre-built into panels at the factory and installed as complete units, which is faster and easier to quality-control on tall buildings. Both accept single and insulated glass.

Yes. It carries a unique in-built hinged sash specifically designed to prevent glass from falling out under extreme wind pressure — an important safety feature on high-rise elevations.

Yes. The modular panel is built to accommodate both single glass and Insulated Glass Units, so the facade can be specified for the project's thermal and acoustic performance.

High-rise towers, commercial office buildings, IT parks, institutional buildings, and large mixed-use developments — projects where speed of installation and tight quality control matter, and where a stick-built system would be slow to erect.

As a structural glazing system india projects rely on for tall elevations, it's designed bespoke — wind pressure, fixing points, and external features are engineered to the specific building rather than supplied to a fixed standard.

PROCURAL supplies the system and the engineering. As a curtain wall contractor india reference, installation is delivered through PROCURAL's structured fabricator network, with project-based technical support from design through handover.

Facade area and height, glazing spec (single vs IGU), wind pressure design, fixing details, external features, finish, and project location. Send us the facade drawings and we'll come back with a real quote.
