AURA SLIDE — Large Dimension Aluminium Sliding Door & Weatherproof Lift Slide System
Designed For
Luxury Villas | High-Rise Apartments | Resort & Hospitality | Commercial Developments | Sea-Facing Homes
AURA SLIDE
AURA SLIDE — Lift. Slide. Experience Scale.
Designed for the Big View. Engineered to Glide.
Oversized panels. Slim sightlines. Built to move with a fingertip.
AURA SLIDE is PROCURAL's imported lift and slide aluminium door, built for luxury villas, penthouses, and hospitality projects where large, uninterrupted glass is the goal. The sash lifts clear of its seal before it moves, so even a heavy panel glides effortlessly, then drops back onto the seal for a tight, weatherproof close.

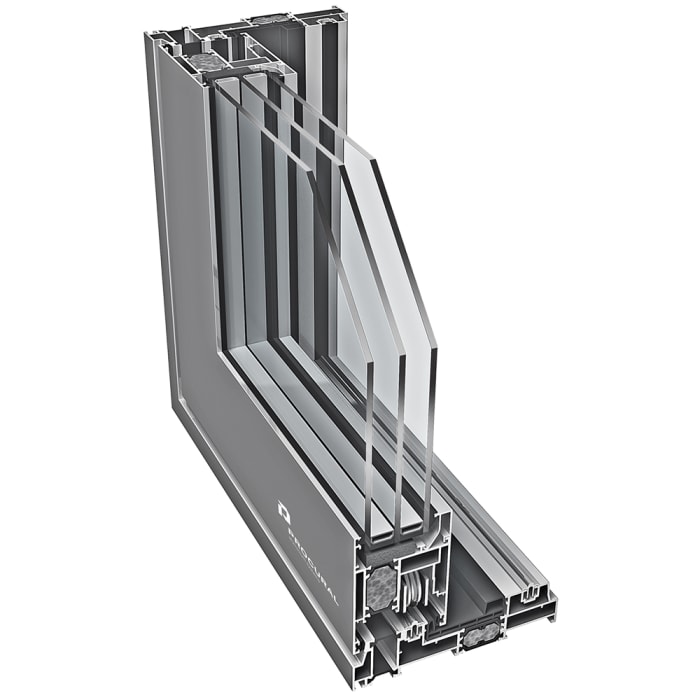

Built with frame depths of 160/154 mm for 2-rail and 247/241 mm for 3-rail and a 67 mm sash, AURA SLIDE accommodates sash sizes up to 3300 × 3000 mm or 2300 × 3500 mm and weights up to 300/400 kg per panel, running up to eight sashes in a single opening. A corner floating mullion option lets two runs of glass meet without a structural column, and a low-threshold option gives a flush transition between inside and out.
Tested for air tightness up to Class 4, water tightness up to Class 9A, and wind resistance up to Class C3/B5, AURA SLIDE is engineered as an insulated lift and slide door (Uf from 1.8 W/m²K, Uw down to 1.0 W/m²K with triple glazing) and carries Class RC2 burglary resistance in accordance with EN 1627.
Why AURA SLIDE Stands Apart
- Moves Heavy Panels Effortlessly - The lift and slide mechanism raises the sash off its seal before it glides, so panels up to 300/400 kg move with a fingertip and seal tight when closed.
- Built for the Largest Views - Sash sizes up to 3300 × 3000 mm, up to eight sashes per opening, and a corner floating mullion option deliver expansive, uninterrupted glass across the widest spans.
- Tested Security and Weather Performance - Class RC2 burglary resistance (EN 1627), wind resistance up to Class C3/B5, and water tightness up to Class 9A make AURA SLIDE as secure and weatherproof as it is refined.
- Insulated for Year-Round Comfort - A thermal break with Uf from 1.8 W/m²K, reaching Uw 1.0 W/m²K with triple glazing, keeps interiors comfortable through summer and winter, backed by automatic drive compatibility for effortless operation.
Technical Parameters

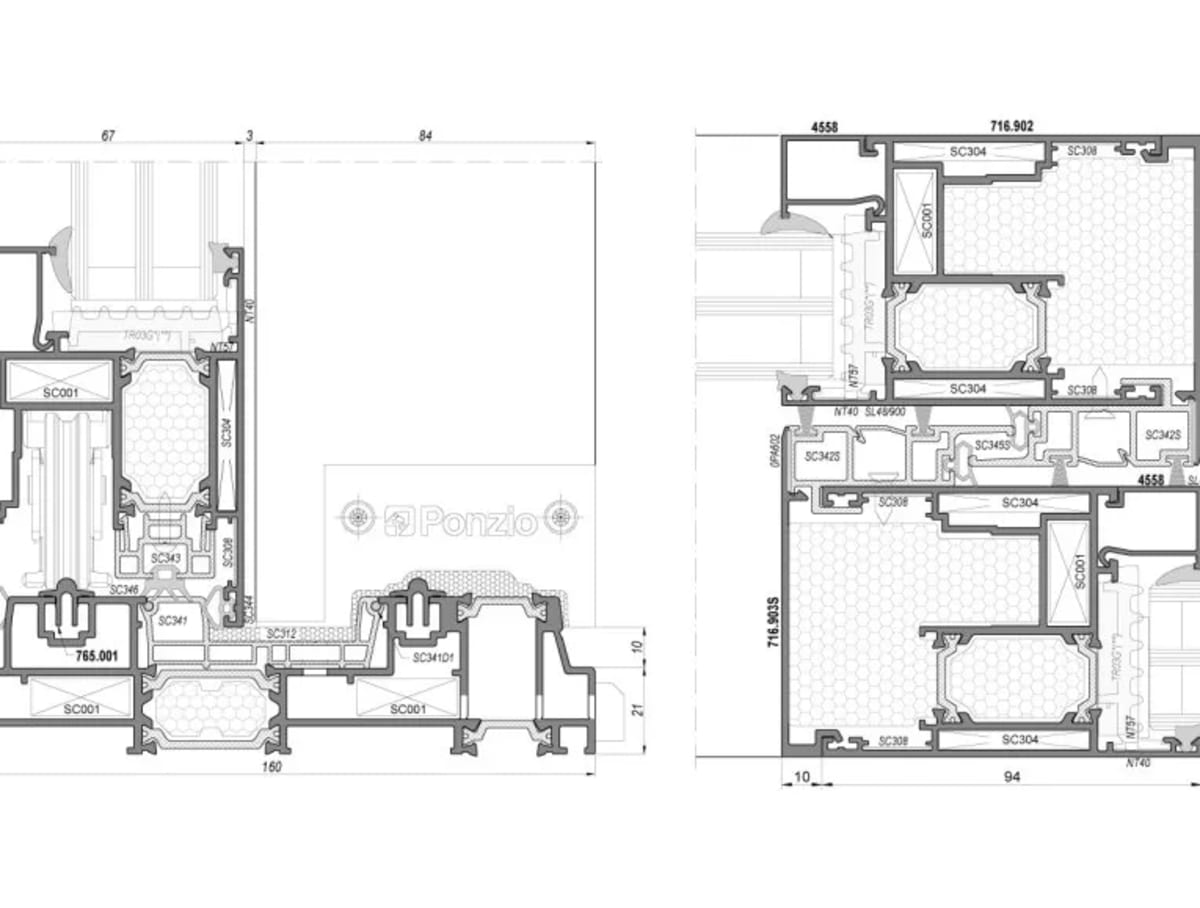

ASSEMBLY DRAWINGS
FEATURES & BENEFITS
Lift and Slide Mechanism
Advanced lifting hardware moves heavy panels with a light touch. The sash lifts off the seal to slide, then drops back to lock in place.
Heavy Sash Capacity
Engineered to carry heavy panels per sash. Large-dimension constructions with multiple sashes are part of the standard spec.
Automatic Drive Compatible
For sashes too heavy to operate manually, AURA SLIDE accepts automatic drive systems. Useful for accessibility-focused projects and very large panels.
Corner Glass Sliding Door
The corner glass sliding door aluminium floating mullion solution lets two runs of sliding glass meet at a corner with no visible vertical post. The room opens completely on both sides.
Properly Insulated
Thermal break technology delivers real insulation for hot, cold, and coastal climates.
Weatherproof Where It Counts
A weatherproof aluminium lift slide door built for sea-facing, high-floor, and hilltop projects — sealed against wind, water, and air.
Burglar-Proof Hardware
Tested against attempted forced entry, not just heavy weather.
Low Threshold Option
A flush threshold for a clean walk-through between indoor and outdoor spaces. No tripping point, no broken sightline.
