GEMINI — Heavy Duty Lift and Slide Door Aluminium System
Designed For
Villas, apartments, penthouses, and modern homes — and as an aluminium sliding door for hotel suites and luxury sliding doors for hotels and resort villas.
GEMINI
GEMINI — Design. Define. Elevate.
Designed for Grand Openings. Engineered for Effortless Movement.
Large panels. Smooth glide. Built for openings meant to make a statement..

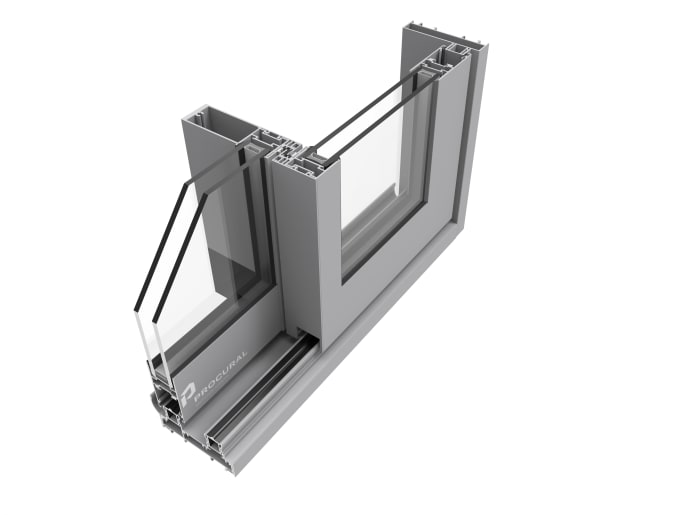

GEMINI is a high-performance aluminium sliding door built for villas, apartments, and hotels where the opening is the centrepiece. A heavy duty aluminium sliding door that carries large panels, glides smoothly under daily use, and seals properly when closed — one of PROCURAL's luxury aluminium sliding doors.
Available in 2-track (108 mm) and 3-track (169 mm) configurations, GEMINI accommodates sash sizes up to 1500 × 3500 mm, with lift and slide door aluminium hardware compatibility carrying up to 300 kg. Slim 39 mm door interlocks keep sightlines tight across wide spans, while the PROCURAL Concealed Aqueduct System (P-CAD) sits hidden inside the frame, with no visible drain holes breaking the line of the door.
Tested for air tightness up to Class A3, water tightness up to E1050, and wind resistance up to Class DL3000, GEMINI is engineered to perform reliably as a large opening aluminium sliding door in demanding Indian conditions, while supporting glazing from 12 mm to 32 mm for design flexibility.
Why GEMINI Stands Apart
- Built for Grand Openings - Slim 39 mm door interlocks and large panel capacity maximise the glass area, creating wider views, brighter interiors, and openings that connect inside and out.
- Handles Heavy Panels - Supporting sash sizes up to 1500 × 3500 mm and weights up to 300 kg on lift and slide hardware, GEMINI delivers smooth, stable operation even across the widest spans.
- Performance You Can Trust - Engineered with the concealed P-CAD drainage system and tested air, water, and wind performance up to Class DL3000, GEMINI is built to withstand daily use and challenging weather.
- Flexible by Design - With 2-track and 3-track options, standard roller or lift and slide hardware, and glazing compatibility from 12 mm to 32 mm, GEMINI adapts to large-scale residential and hospitality requirements.
Technical Parameters

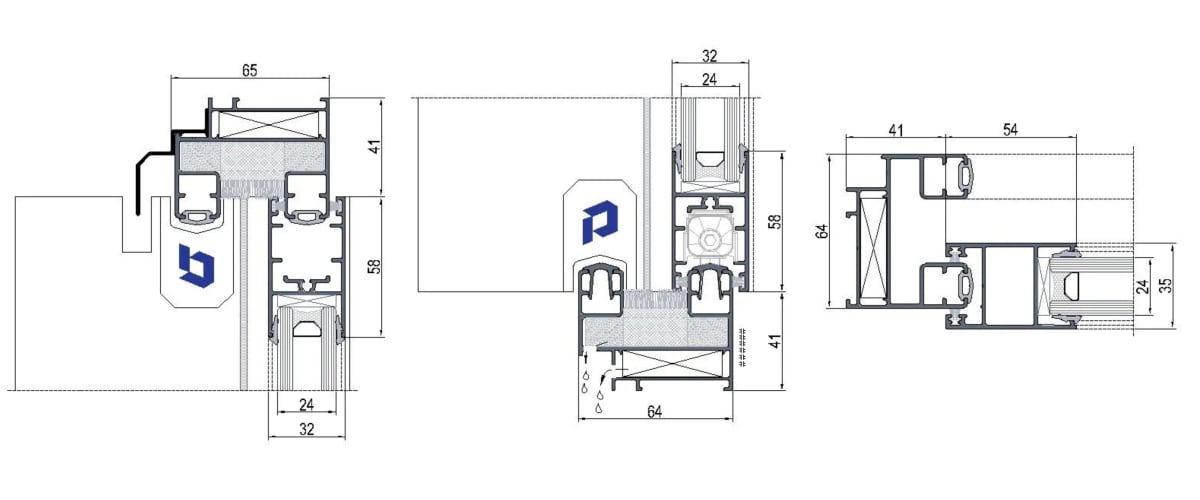

ASSEMBLY DRAWINGS
FEATURES & BENEFITS
Built for Wider Openings
Sashes large enough that the glass becomes the room, not just sits in it.
Lift and Slide
The same sash takes standard rollers and premium lift and slide systems hardware. One profile, two ways to operate.
Heavy Duty Build
A heavy-duty sash that carries the kind of glass other systems flex under.
Hidden Drainage
Water carries out from inside the frame. No drain holes interrupting the line of the door.
High Wind Resistance
Built for high-floor terraces and exposed coastal apartments.
Water Tight Where it Counts
Tested sealing that keeps heavy rain outside, where it belongs.
Glass That Goes the Distance
Single, laminated, double, and triple glazed units all work.
Concealed Anchors
The side jamb hides the fixings. What you see is glass and aluminium, not screws.
